發布時間: 2015-8-18 11:17
正文摘要:這種夾桿是否是靜壓膨脹工作原理？! p8 f7 m5 i7 p* r7 T9 D 脹緊夾桿的dosier孔能不能調節圓度。( N2 U; N# V$ [ 使夾桿頂部和底部同心都在0.002毫米以內。& t; K K- G& V ... |
| 看上去就是一個液壓夾持原理的，鏈接主軸的一個holder啊。就像樓上展示的MAPAL的液壓刀柄，工作原理一樣的。有鎖緊螺釘（驅動螺釘），也有泄壓螺釘（一般情況下膠水密封住）。 |
starsea2 發表于 2015-8-25 09:08 You can find out yourself by using compressed air to see how the oil flows. I'm not sure exactly how the dosier works on this fixture manually or automatically. To my understanding it could be both: in manual mode, you can expand the fixture by turning the 調脹緊 screw. if it is applied in automatic mode, the doiser hole is connected to hydraulic supply station, the fixture works when the pressurized oil is pumped in through the doiser hole. ' r+ `+ H5 D) x9 }! x" ]7 u3 w* l |

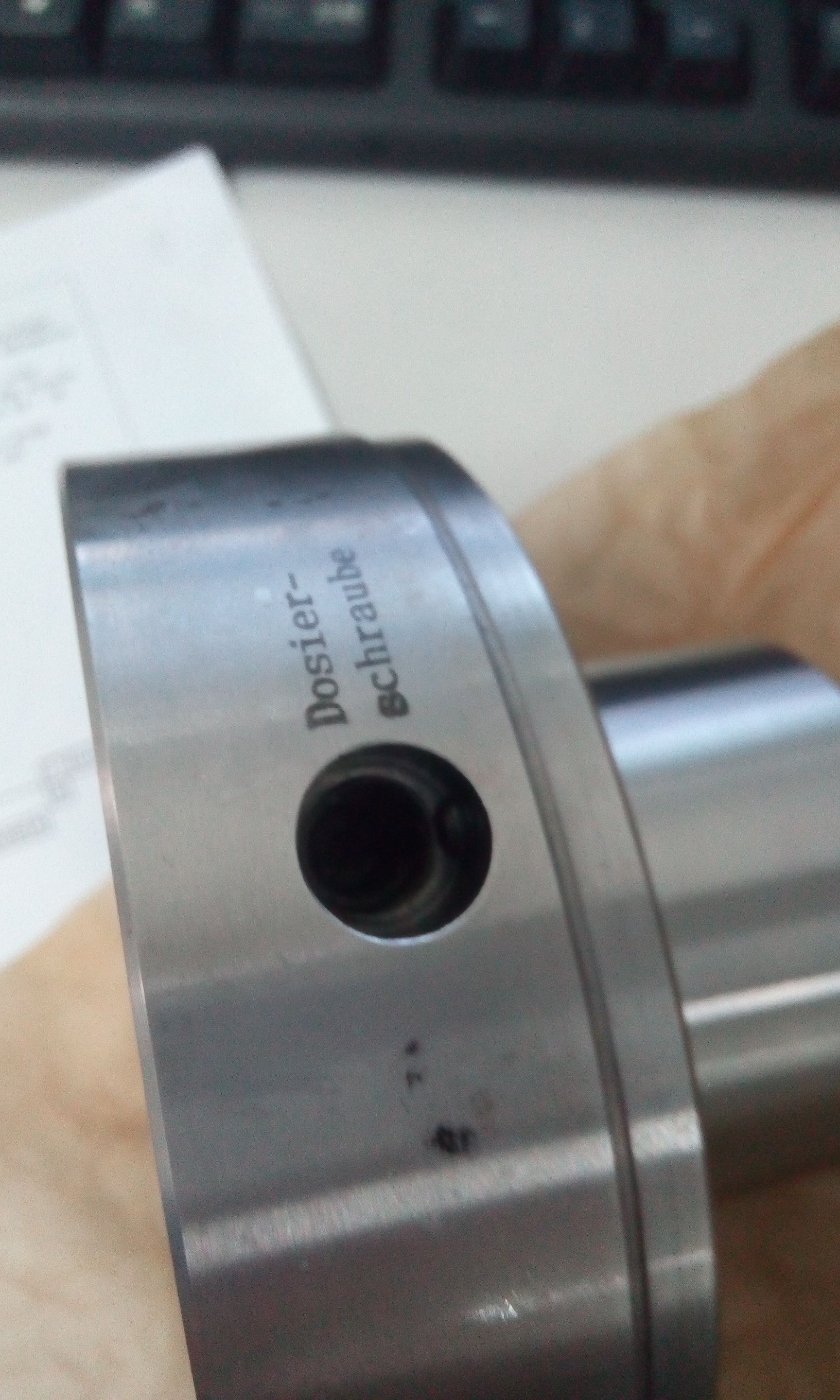

joseph8779 發表于 2015-8-21 08:02 抱歉，回復晚了。! o, V8 R* b- h& S6 ]$ n" h 有3個也。柱頂的那個孔調脹緊。+ {3 x2 L. P! i. ^" z; F* N, V 底座有2個孔。 1個小的被密封了。5 Q$ ]7 m: P3 \2 w/ ` 另一個大的里面有螺絲。標有DOSIER. 我問的就是這個DOSIER孔。: g/ q9 Y0 }: I1 ~ |
| 厲害！ |
| Hi, Starsea, show you a picture |
| Hi, Starsea, show you a picture |
| Chinese is living in overseas, sorry for replying in English, Typing Chinese isn't allowed on company computer. |
joseph8779 發表于 2015-8-19 15:15 thank you.! m: G. D+ N% P- V @ are you chinese?& @" Y- K# U1 S) E+ {. N |
